MacroBin 26-NG
Our next generation MacroBin 26 has undergone an upgrade using the latest in design innovations to make a superior bin with features that far outperform other bins on the market. The 26NG features newly engineered reinforced columns and feet that improve impact resistance and reduce damage during tough harvests. An original cross pattern design in the base further reduces damage by decreasing base line deflection.
Product Features

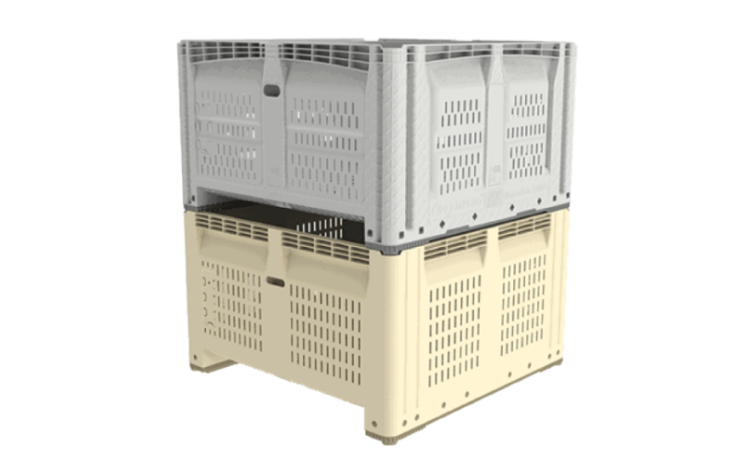

- 100% stack compatibility with previous generation MacroBin 26-FV
- Durable FDA-approved plastic
- Wall taper creates a “Bruise Buffer Zone”
- New column design
- Smooth, soft surfaces and rounded corners
- Increased ventilation in the sides
- Several identification methods including RFID tags and foil embossing are available
Benefits
- Shape offers a “Bruise Buffer Zone” on outside of walls to protect fruit from adjacent stacks
- Column design absorbs and recoils impact, instead of resisting impact and breaking
- Soft surfaces protect fruit
- Easy to repair
- Quickly disassembles for efficient shipping
- Drainage hole size allows the maximum amount of water to escape while reducing the amount of dirt and rocks that get in
- Improved traceability and security
Dimensions
| External Dimensions | 47.75″ (L) x 47.75″ (W) x 28.5″ (H) |
| Internal Dimension | 43.625″ (L) x 43.625″ (W) x 23.438″ (H) |
| Load Capacity | 1,300 lbs |
| Volume Capacity | 49,603 cubic inches (+/- 4%) |
| Tare Weight | 76 lbs |
| Maximum Stack Weight | a. 12,000 lbs (long term, ambient) b. 13,000 lbs (short term (<1 month), ambient) c. 15,000 lbs (long term, cold storage (0° F to 35° F)²) |
| External Dimensions | 1,212.9 mm (L) x 1,212.9 mm (W) x 724 mm (H) |
| Internal Dimensions | 1,108 mm (L) x 1,108 mm (W) x 594.6 mm (H) |
| Load Capacity | 589.67 kg |
| Volume Capacity | 812.85 ltr. (+/- 4%) |
| Tare Weight | 34.47 kg |
| Maximum Stack Weight | a. 5,443.11 kg (long term, ambient) b. 5,896.7 kg (short term (<1 month), ambient) c. 6,803.9 kg (long term, cold storage (0° F to 35° F)²) |
Download the specification sheet
MacroBin 26NG Specsheet pdf 831 KBFor more information on this product and to request a product specification contact the IPL team below.
